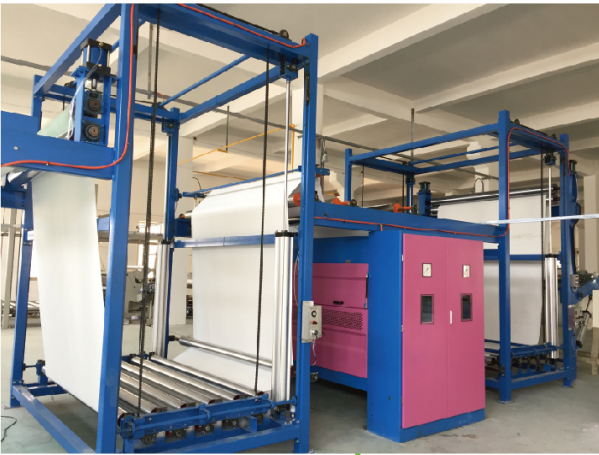

Singeing Unit For Nonwoven Fabric

Singeing Unit For Nonwoven Fabric

Tailored design for nonwoven fabric singeing process, One closed chamber, two burners. inspect windows door both sides. Easily for clean and Maintenance. 2pcs barometers installed on the side door for operator easily handle the flame. Two sets Y model double jet Burner(similar same as Osthoff),...

Chat Now
Product details

Tailored design for nonwoven fabric singeing process,

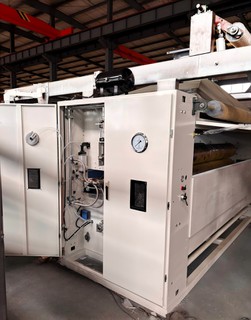

One closed chamber, two burners. inspect windows door both sides. Easily for clean and Maintenance.

2pcs barometers installed on the side door for operator easily handle the flame.

Two sets Y model double jet Burner(similar same as Osthoff), SiC brick fixed along with the burner on both sides; singed onto the cooling roll.

Multi-times air& gas mixing realized .Integrated aluminum alloy material body, inside with water cooling channel to cooling burner , prevent burner being distort,

Through times compressed, collided, the more even mixed gas and air is sprayed from the burner narrow gap, generate strong penetrability, good linear and evenly flame ,high temperature flame.

The burner can be moved in parallel manually according various fabrics.

2pcs cooled water roller, dia.300mm, inside jacket structure, outside 2.5mm SS plate, inside 2mm MS plate, better cooling performance, the cooled rollers driving fabric as light padder function.

2sets air cylinder, used to turn burner, once speed reach set value, then turn to singeing position ; once speed lower the set value, then turn burner back to initial position.

2 pcs water flow switch, check water flow, gas solenoid valve stop if no water detected, gas solenoid valve auto close and alarm if flame extinguish. Meanwhile burner auto reset.

1set cooled water temperature sensor, auto check, keep water under 50 centigrade while running,

4pcs PT100 sensor for burner body temperature on line monitoring and protect.

2pcs pressure gauge with electric contact for fresh water supply pressure check and protect.

1pcs air pressure switch for exhaust fan

2sets auto ignition device, can ignite 3~5 times per operation.

2sets flame detectors(ionization), check flame condition, once ignition failed, then shut-off gas valve and alarm; if flameout while machine running, then shut-off gas valve and alarm, then burner back to initial position.

2 sets gas& air pipes, made of seamless pipe, configured with shut-off valve, solenoid valve, proportional valve, pressure adjusting valve, mixing pipes, barometers, metal soft pipe, butterfly valve etc.

2 sets air supply blower, high pressure and enough flux, inverter control, save energy.

1 set flame width adjustment device, consists of hand valve, adjusting valve, gauge, flow adjusting valve etc.

2pcs guide roll inside of singeing unit, dia.150mm. 2mm MS+2mm SS compounded.

2pcs guide roll at the entry and exit of singeing unit, dia.150mm, 2mm MS+2mm SS compounded.

1 set smoke exhaust fan,



As one of the best singeing unit for nonwoven fabric manufacturers in China with a good reputation, Prosperity Textile Machinery is able to offer you customized singeing unit for nonwoven fabric. Welcome to visit our website.
